Aerial Cable (6 fibers per tube)
Aerial Cable 6F
- Loose tube provides one of the most basic protecting layers for the fibers.
- Each loose tube comprises of 6 optical fibers with filled jelly compound for prevention of water ingress.
- The loose tubes are stranded around a central strength member giving more mechanical strength to the cable.
- Aramid yarns contribute to better mechanical strength without losing the cables' flexibility.
- Self-Support Steel Wire adds extra tension strength to the cable.
- Armored, Fire-retardant, UV resistance, anti-rodent features can be designed as according to applications.
- The Aerial Cable applicable for aerial installation, CATV system and for subscriber networks.
| Cable Structure | ||
|---|---|---|
| Fiber Count | 6~36 | 48 |
| Fibers per Subunit | 6 | |
| Self-Support wire diameter(mm) | 7/1.8 | |
| Cable Diameter(Approx.)(mm) | 14.5*24.0 | 16.5*26.0 |
| Cable Weight (Approx.) (kg/km) | 350 | 400 |
| Maximum Tensile Load | 3000N | |
| Minimum bending radius | Dynamic：20 * OD, Static：10 * OD | |
| OD=cable outer diameter | ||
| Operating temperature range | -30℃~60℃ | |

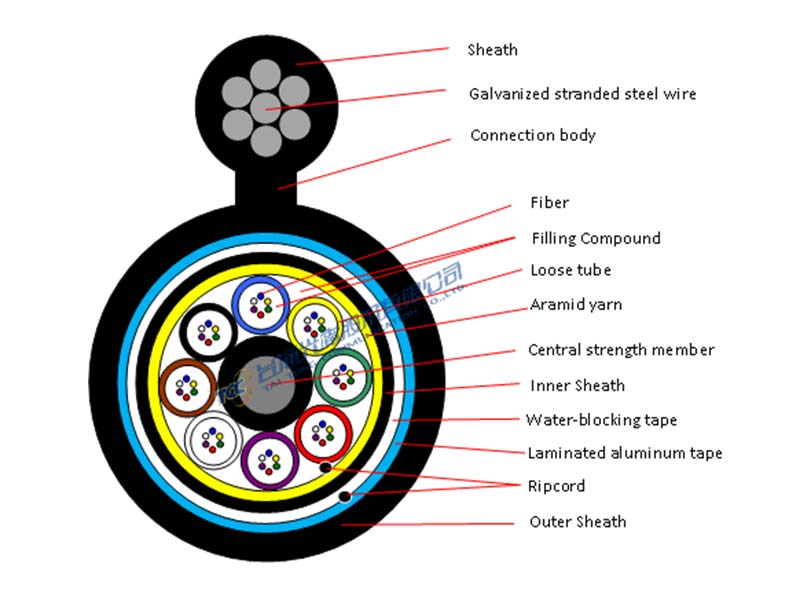

| Cable Construction |
|---|
 |
