Mid-Span Indoor Optical Fiber Cable
Mid-Span Indoor
- LSFH Sheathed Gel-free Optical Fiber Cable is specifically design for indoor application with Bending Loss Insensitive Single-Mode Optical Fiber.
- Understanding the need to be flexible and having low macro bending loss sensitivity compare to the regular fiber cables.
- TCC offers its high resistance low macro bending loss small radii cables for installations between pillars and corners.
- With this exceptionally small outer diameter cable structure, it is considered also as the most ideal cable for duct/riser pulling installation where space within duct/riser pulling is limited and congested.
Cable Structure | |||||||||
---|---|---|---|---|---|---|---|---|---|
Fiber Count | 12 | 24 | 24 | 48 | 24 | 48 | 48 | 96 | 144 |
Fibers per Subunit | 2 | 4 | 6 | 12 | |||||
Cable Diameter(Approx.)(mm) | 5.5 | 7.1 | 5.7 | 7.7 | 6.0 | 6.7 | 7.0 | 7.9 | 9.8 |
Cable Weight (Approx.) (kg/km) | 24 | 45 | 24 | 45 | 26 | 40 | 28 | 46 | 74 |
Maximum Tensile Load | 1300N | 1500N | |||||||
Minimum bending radius | Dynamic:20 * OD, Static:10 * OD | ||||||||
OD=cable outer diameter | |||||||||
Operating temperature range | -30℃~60℃ |

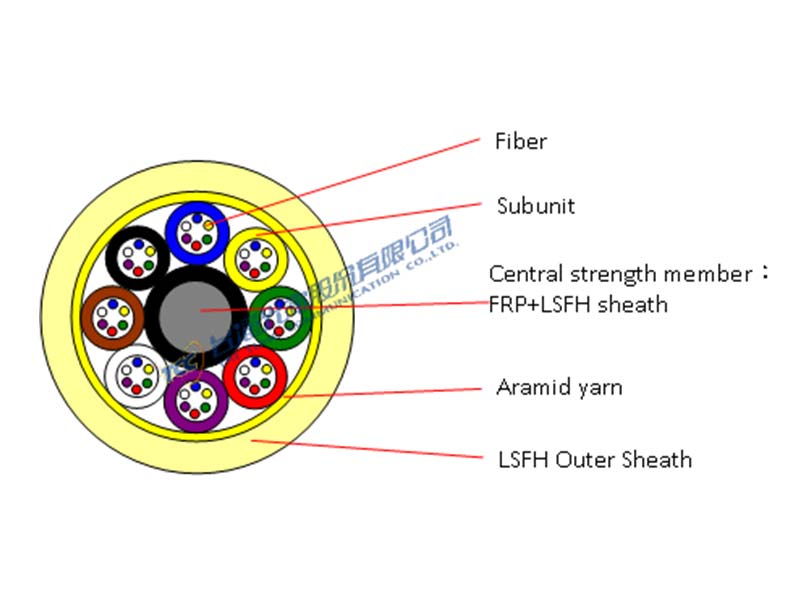

Cable Construction |
---|
