Slotted-Core Ribbon Type Cable
Slotted-Core Ribbon

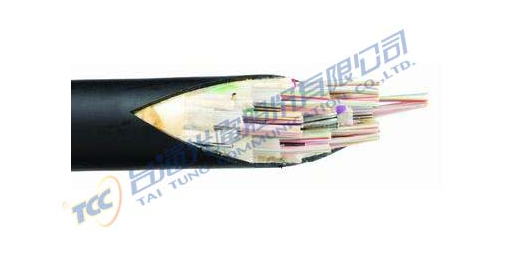

- Ribbon fibers are stacked within the slots of the spiral cord, surrounding a central strength member.
- The core is wrapped by a water blocking tape for water proofing.
- This design contributes a much smaller cable outer diameter as compare to the loose tube design, Slotted Core Ribbon Type Optical Cables provide the smallest outer diameter contributing space and offer more ease of installation in buried ducts.
- TCC Slotted-Core Ribbon Type Optical Cables offers up to 300 fiber or more.
Cable Structure | |||
---|---|---|---|
Fiber Count | 4~100 | 200 | 300 |
Fibers per Ribbon | 4 | ||
Number of Slot | 5 | 10 | 15 |
Cable Diameter(Approx.)(mm) | 14.5 | 19.0 | 22.5 |
Cable Weight (Approx.) (kg/km) | 175 | 300 | 360 |
Maximum Tensile Load | 3000N | ||
Minimum bending radius | Dynamic:20 * OD, Static:10 * OD | ||
OD=cable outer diameter | |||
Operating temperature range | -30℃~60℃ |

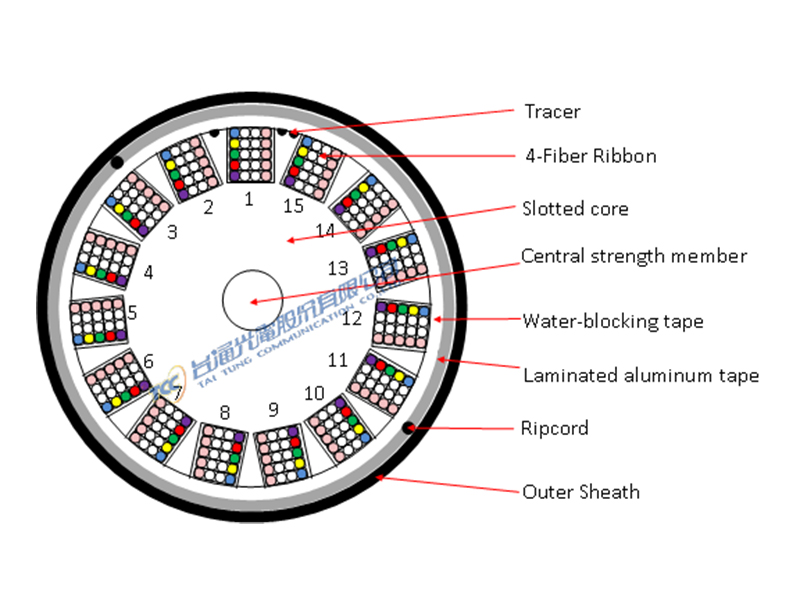

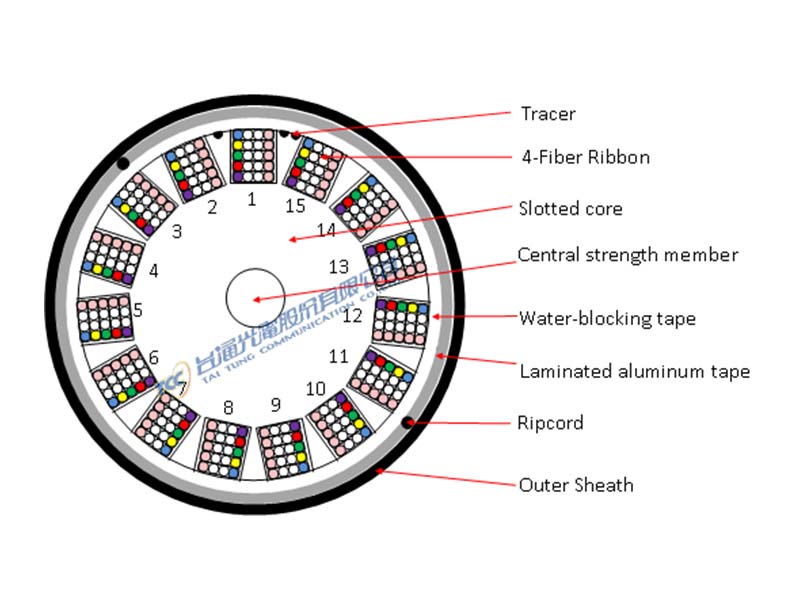

Cable Construction |
---|
