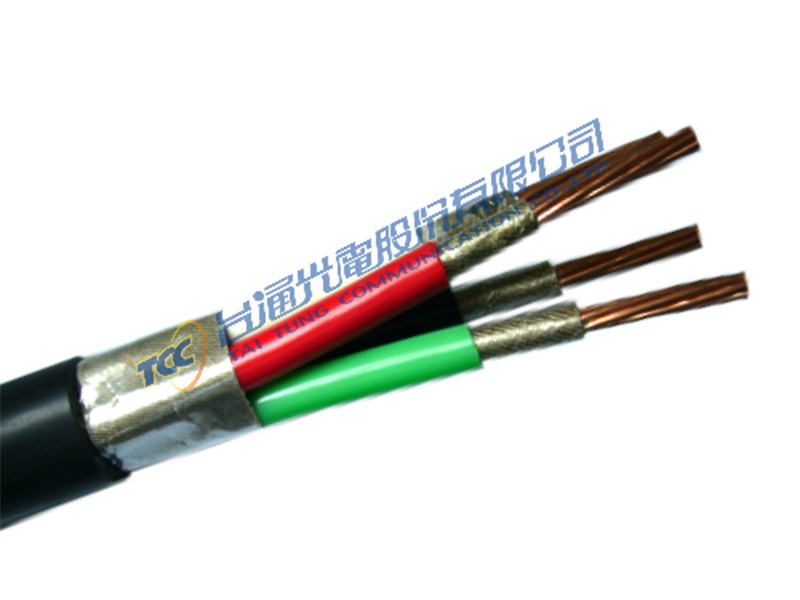

600V/1KV XLPE‐LSFH‐FR CABLE
600V 1KV XLPE LSFH CABLE

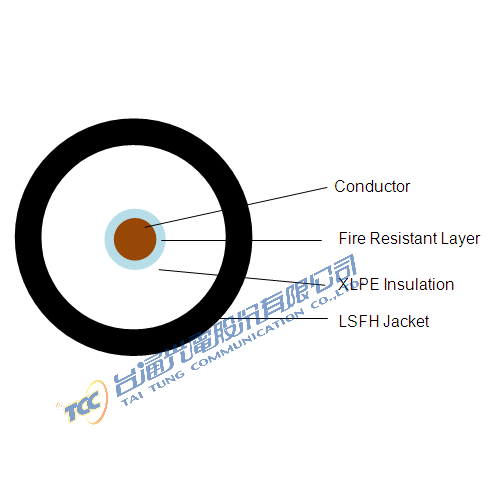

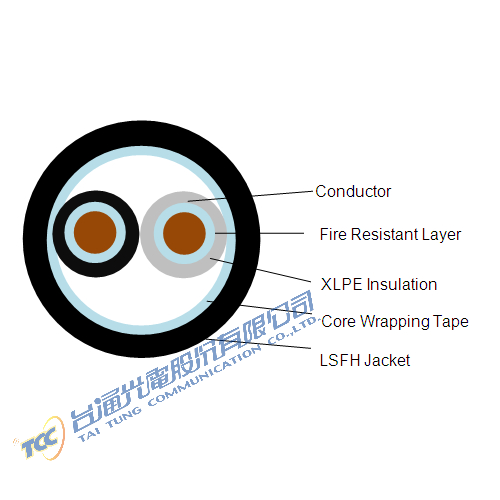

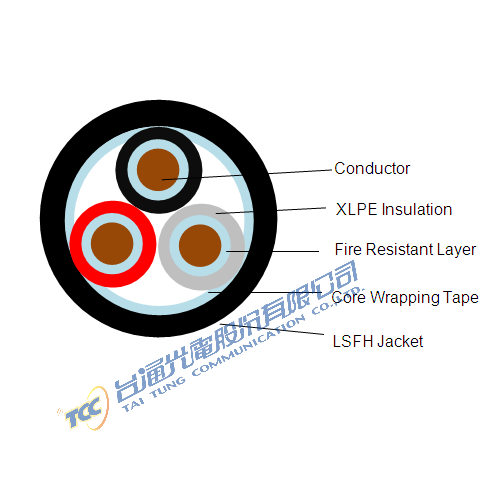

‧Fire Resistant Layer
‧Insulation：XLPE
‧Core Wrapping Tape
‧Outdoor：LSFH Jacket
|
Conductor |
Core Numbers |
Fire Resistant Layer |
XLPE Insulation Thickness |
LSFH Sheath Thickness |
Overall Diameter Approx. |
Maximum Conductor Resistance |
Test Voltage |
Minimum Insulation Resistance |
||
|
Conductor Nominal Area |
Structure |
Diameter |
||||||||
|
mm2 |
--- |
mm |
C |
mm |
mm |
mm |
mm |
Ω/km |
kV/1min |
MΩ-km |
|
14 |
7/1.6 |
4.8 |
1 |
0.4 |
1.0 |
1.5 |
11.0 |
1.30 |
2.0 |
1500 |
|
Compressed conductor |
4.4 |
1 |
1.5 |
10.5 |
1.31 |
1500 |
||||
|
50 |
19/1.8 |
9.0 |
1 |
0.4 |
1.5 |
1.5 |
16.5 |
0.378 |
2.5 |
1500 |
|
Compressed conductor |
8.5 |
1 |
1.5 |
16.0 |
0.366 |
1500 |
||||
|
60 |
19/2.0 |
10.0 |
1 |
0.4 |
1.5 |
1.5 |
17.0 |
0.303 |
2.5 |
1500 |
|
Compressed conductor |
9.3 |
1 |
1.5 |
16.5 |
0.305 |
1500 |
||||
|
80 |
19/2.3 |
11.5 |
1 |
0.4 |
1.5 |
1.5 |
19.0 |
0.229 |
2.5 |
1500 |
|
Compressed conductor |
10.8 |
1 |
1.5 |
18.0 |
0.229 |
1500 |
||||
|
125 |
19/2.9 |
14.5 |
1 |
0.4 |
2.0 |
1.6 |
23.0 |
0.144 |
3.0 |
1000 |
|
Compressed conductor |
13.5 |
1 |
1.5 |
22.0 |
0.146 |
1000 |
||||
|
150 |
37/2.3 |
16.1 |
1 |
0.4 |
2.0 |
1.7 |
25.0 |
0.118 |
3.0 |
900 |
|
Compressed conductor |
14.7 |
1 |
1.6 |
23.0 |
0.122 |
1000 |
||||
|
200 |
37/2.6 |
18.2 |
1 |
0.4 |
2.5 |
1.8 |
28.0 |
0.0922 |
3.0 |
1000 |
|
Compressed conductor |
17.0 |
1 |
1.7 |
27.0 |
0.0915 |
1500 |
||||
|
250 |
61/2.3 |
20.7 |
1 |
0.4 |
2.5 |
1.9 |
31.0 |
0.0722 |
3.0 |
900 |
|
Compressed conductor |
19.0 |
1 |
1.8 |
29.0 |
0.0739 |
1000 |
||||
|
325 |
61/2.6 |
23.4 |
1 |
0.4 |
2.5 |
2.0 |
33.5 |
0.0565 |
3.0 |
800 |
|
Compressed conductor |
21.7 |
1 |
1.9 |
32.0 |
0.0568 |
900 |
||||
|
400 |
61/2.9 |
26.1 |
1 |
0.4 |
2.5 |
2.1 |
36.5 |
0.0454 |
3.0 |
700 |
|
Compressed conductor |
24.1 |
1 |
2.0 |
34.5 |
0.0462 |
800 |
||||
|
500 |
61/3.3 |
28.8 |
1 |
0.4 |
3.0 |
2.2 |
40.0 |
0.0373 |
3.5 |
800 |
|
Compressed conductor |
26.9 |
1 |
2.2 |
38.5 |
0.0369 |
800 |
||||
|
600 |
91/2.9 |
31.9 |
1 |
0.4 |
3.0 |
2.4 |
44.0 |
0.0304 |
3.5 |
700 |
|
Compressed conductor |
29.5 |
1 |
2.3 |
41.5 |
0.0308 |
800 |
||||
|
800 |
127/2.8 |
36.4 |
1 |
0.4 |
3.5 |
2.6 |
50.0 |
0.0234 |
3.5 |
800 |
|
Compressed conductor |
34.0 |
1 |
2.5 |
48.0 |
0.0231 |
800 |
||||
|
1000 |
127/3.2 |
41.6 |
1 |
0.4 |
3.5 |
2.8 |
56.0 |
0.0179 |
3.5 |
700 |
|
Compressed conductor |
38.0 |
1 |
2.7 |
52.0 |
0.0187 |
700 |
||||
|
1.25 |
7/0.45 |
1.35 |
2 |
0.4 |
0.8 |
1.5 |
11.0 |
16.8 |
1.5 |
2500 |
|
1.5 |
30/0.254 |
1.65 |
2 |
0.8 |
1.5 |
11.0 |
13.0 |
2500 |
||
|
2 |
7/0.6 |
1.8 |
2 |
0.4 |
0.8 |
1.5 |
12.0 |
9.42 |
1.5 |
2500 |
|
3.5 |
7/0.8 |
2.4 |
2 |
0.8 |
1.5 |
13.0 |
5.30 |
2500 |
||
|
5.5 |
7/1.0 |
3.0 |
2 |
0.4 |
1.0 |
1.5 |
15.0 |
3.40 |
1.5 |
2500 |
|
8 |
7/1.2 |
3.6 |
2 |
0.4 |
1.0 |
1.5 |
16.0 |
2.36 |
1.5 |
2000 |
|
Compressed conductor |
3.4 |
2 |
1.5 |
16.0 |
2.34 |
2000 |
||||
|
14 |
7/1.6 |
4.8 |
2 |
0.4 |
1.0 |
1.5 |
19.0 |
1.33 |
2.0 |
1500 |
|
Compressed conductor |
4.4 |
2 |
1.5 |
18.5 |
1.34 |
1500 |
||||
|
1.25 |
7/0.45 |
1.35 |
3 |
0.4 |
0.8 |
1.5 |
12.0 |
16.8 |
1.5 |
2500 |
|
2 |
7/0.6 |
1.8 |
3 |
0.8 |
1.5 |
13.0 |
9.42 |
1.5 |
2500 |
|
|
3.5 |
7/0.8 |
2.4 |
3 |
0.4 |
0.8 |
1.5 |
14.0 |
5.30 |
1.5 |
2500 |
|
5.5 |
7/1.0 |
3.0 |
3 |
1.5 |
16.0 |
3.40 |
1.5 |
2500 |
||
|
8 |
7/1.2 |
3.6 |
4 |
0.4 |
1.0 |
1.5 |
19.0 |
2.36 |
1.5 |
2000 |
|
Compressed conductor |
3.4 |
4 |
1.5 |
18.5 |
2.34 |
2000 |
||||
|
14 |
7/1.6 |
4.8 |
4 |
0.4 |
1.0 |
1.5 |
23.0 |
1.33 |
2.0 |
1500 |
|
Compressed conductor |
4.4 |
4 |
1.5 |
22.0 |
1.34 |
1500 |
||||
|
1.25 |
7/0.45 |
1.35 |
5 |
0.4 |
0.8 |
1.5 |
14.0 |
16.8 |
1.5 |
2500 |
|
2.0 |
7/0.6 |
1.8 |
5 |
0.4 |
0.8 |
1.5 |
15.0 |
9.42 |
1.5 |
2500 |
|
3.5 |
7/0.8 |
2.4 |
5 |
0.4 |
0.8 |
1.5 |
17.0 |
5.30 |
1.5 |
2500 |
|
5.5 |
7/1.0 |
3.0 |
5 |
0.4 |
1.0 |
1.5 |
20.0 |
3.40 |
1.5 |
2500 |
|
1.25 |
7/0.45 |
1.35 |
6 |
0.4 |
0.8 |
1.5 |
15.5 |
16.8 |
1.5 |
2500 |
|
2.0 |
7/0.6 |
1.8 |
6 |
0.4 |
0.8 |
1.5 |
16.5 |
9.42 |
1.5 |
2500 |
|
3.5 |
7/0.8 |
2.4 |
6 |
0.4 |
0.8 |
1.5 |
18.5 |
5.30 |
1.5 |
2500 |
|
5.5 |
7/1.0 |
3.0 |
6 |
0.4 |
1.0 |
1.5 |
21.5 |
3.40 |
1.5 |
2500 |
|
1.25 |
7/0.45 |
1.35 |
7 |
0.4 |
0.8 |
1.5 |
15.5 |
16.8 |
1.5 |
2500 |
|
2.0 |
7/0.6 |
1.8 |
7 |
0.4 |
0.8 |
1.5 |
16.5 |
9.42 |
1.5 |
2500 |
|
3.5 |
7/0.8 |
2.4 |
7 |
0.4 |
0.8 |
1.5 |
18.5 |
5.30 |
1.5 |
2500 |
|
5.5 |
7/1.0 |
3.0 |
7 |
0.4 |
1.0 |
1.5 |
21.5 |
3.40 |
1.5 |
2500 |
