600V/1KV XLPE‐PVC CABLE
600V 1KV XLPE PVC CABLE
‧Insulation：XLPE
‧Outdoor： PVC
|

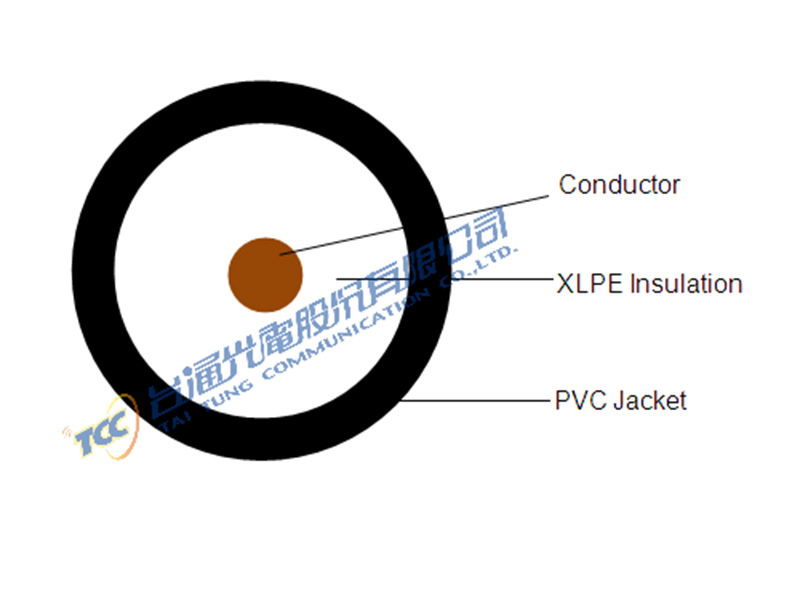

Single core |
|||||||||
|
Conductor |
Minimum Average Insulation Thickness |
Minimum Average Sheath Thickness |
Maximum Conductor Resistance |
Test Voltage |
Minimum Insulation Resistance |
Overall Diameter Approx. |
Estimated Weight |
||
|
Conductor Nominal Area |
Structure |
Diameter |
|||||||
|
mm2 |
--- |
mm |
mm |
mm |
Ω/km |
kV |
MΩ/km |
mm |
Kg/km |
|
2.0 |
7/0.6 |
1.8 |
0.76 |
0.38 |
9.24 |
3.5 |
2500 |
4.4 |
51 |
|
3.5 |
7/0.8 |
2.4 |
0.76 |
0.38 |
5.20 |
3.5 |
2000 |
5.0 |
71 |
|
5.5 |
7/1.0 |
3.0 |
0.76 |
0.38 |
3.33 |
3.5 |
2000 |
5.6 |
94 |
|
8 |
7/1.2 |
3.6 |
1.14 |
0.38 |
2.31 |
5.5 |
1500 |
6.6 |
134 |
|
14 |
7/1.6 |
4.8 |
1.14 |
0.76 |
1.30 |
5.5 |
1500 |
8.6 |
203 |
|
22 |
7/2.0 |
6.0 |
1.14 |
0.76 |
0.824 |
5.5 |
1500 |
9.8 |
288 |
|
38 |
7/2.6 |
7.8 |
1.40 |
0.76 |
0.487 |
7.0 |
1000 |
12.1 |
450 |
|
60 |
19/2.0 |
10.0 |
1.40 |
1.14 |
0.303 |
7.0 |
1000 |
15.6 |
679 |
|
80 |
19/2.3 |
11.5 |
1.40 |
1.14 |
0.229 |
7.0 |
1000 |
17.1 |
864 |
|
100 |
19/2.6 |
13.0 |
1.40 |
1.14 |
0.180 |
7.0 |
800 |
18.5 |
1083 |
|
150 |
37/2.3 |
16.1 |
1.65 |
1.65 |
0.118 |
8.0 |
800 |
23.4 |
1676 |
|
200 |
37/2.6 |
18.2 |
1.65 |
1.65 |
0.0922 |
8.0 |
800 |
25.5 |
2091 |
|
250 |
61/2.3 |
20.7 |
1.65 |
1.65 |
0.0722 |
8.0 |
600 |
28.0 |
2665 |
|
325 |
61/2.6 |
23.4 |
2.03 |
1.65 |
0.0565 |
10.0 |
600 |
31.4 |
3380 |
|
400 |
61/2.9 |
26.1 |
2.03 |
1.65 |
0.0454 |
10.0 |
600 |
34.1 |
4147 |
|
500 |
61/3.2 |
28.8 |
2.03 |
1.65 |
0.0373 |
10.0 |
600 |
36.8 |
4990 |
|
600 |
91/2.9 |
31.9 |
2.41 |
2.41 |
0.0304 |
10.0 |
600 |
38.5 |
6105 |
|
800 |
127/2.8 |
36.4 |
2.41 |
2.41 |
0.0234 |
10.0 |
400 |
46.9 |
7883 |
|
1000 |
127/3.2 |
41.6 |
2.41 |
2.41 |
0.0179 |
10.0 |
400 |
52.1 |
10160 |
|

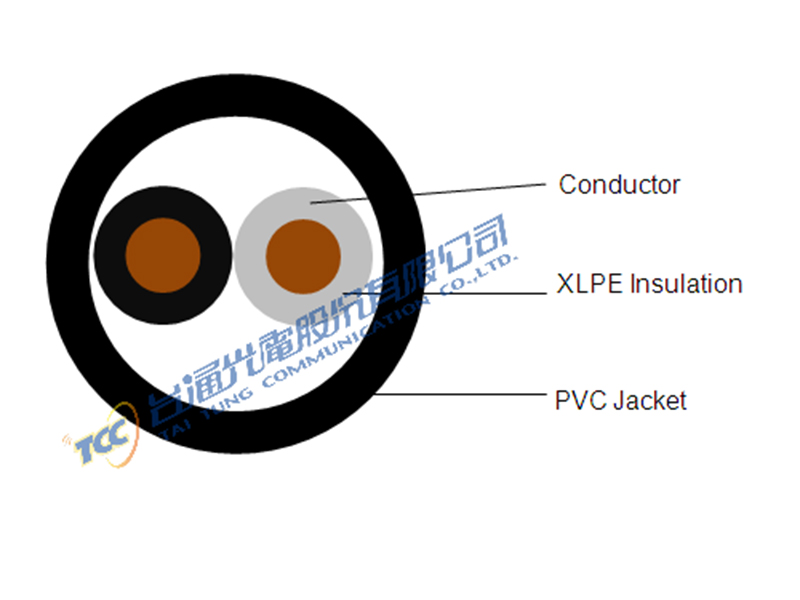

Two Core |
|||||||||
|
Conductor |
Minimum Average Insulation Thickness |
Minimum Average Sheath Thickness |
Maximum Conductor Resistance |
Test Voltage |
Minimum Insulation Resistance |
Overall Diameter Approx. |
Estimated Weight |
||
|
Conductor Nominal Area |
Structure |
Diameter |
|||||||
|
mm2 |
--- |
mm |
mm |
mm |
Ω/km |
kV |
MΩ/km |
mm |
Kg/km |
|
2.0 |
7/0.6 |
1.8 |
0.76 |
1.14 |
9.42 |
3.5 |
2500 |
9.8 |
116 |
|
3.5 |
7/0.8 |
2.4 |
0.76 |
1.14 |
5.30 |
3.5 |
2000 |
11.0 |
160 |
|
5.5 |
7/1.0 |
3.0 |
0.76 |
1.14 |
3.40 |
3.5 |
2000 |
12.2 |
213 |
|
8 |
7/1.2 |
3.6 |
1.14 |
1.52 |
2.36 |
5.5 |
1500 |
16.0 |
341 |
|
14 |
7/1.6 |
4.8 |
1.14 |
1.52 |
1.33 |
5.5 |
1500 |
18.4 |
502 |
|
22 |
7/2.0 |
6.0 |
1.14 |
1.52 |
0.840 |
5.5 |
1500 |
20.8 |
699 |
|
38 |
7/2.6 |
7.8 |
1.40 |
2.03 |
0.497 |
7.0 |
1000 |
26.6 |
927 |
|
60 |
19/2.0 |
10.0 |
1.40 |
2.03 |
0.309 |
7.0 |
1000 |
31.0 |
1683 |
|
100 |
19/2.6 |
13.0 |
1.40 |
2.03 |
0.184 |
7.0 |
800 |
36.8 |
2615 |
|
150 |
37/2.3 |
16.1 |
1.65 |
2.03 |
0.120 |
8.0 |
800 |
46.3 |
4053 |
|
200 |
37/2.6 |
18.2 |
1.65 |
2.79 |
0.0940 |
8.0 |
800 |
50.3 |
5003 |
|
250 |
61/2.3 |
20.7 |
1.65 |
2.79 |
0.0736 |
8.0 |
600 |
55.3 |
6313 |
|
325 |
61/2.6 |
23.4 |
2.03 |
2.79 |
0.0576 |
10.0 |
600 |
62.1 |
7985 |
|

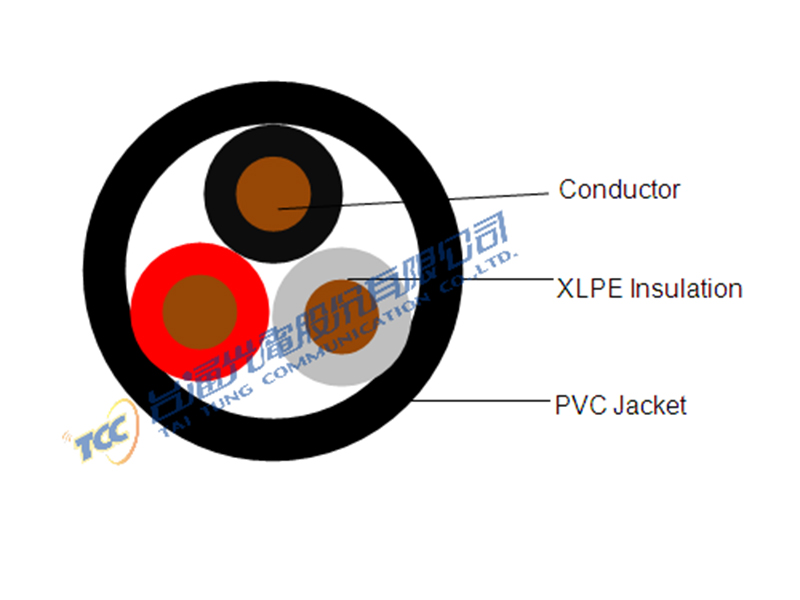

Three Core |
|||||||||
|
Conductor |
Minimum Average Insulation Thickness |
Minimum Average Sheath Thickness |
Maximum Conductor Resistance |
Test Voltage |
Minimum Insulation Resistance |
Overall Diameter Approx. |
Estimated Weight |
||
|
Conductor Nominal Area |
Structure |
Diameter |
|||||||
|
mm2 |
--- |
mm |
mm |
mm |
Ω/km |
kV |
MΩ/km |
mm |
Kg/km |
|
2.0 |
7/0.6 |
1.8 |
0.76 |
1.14 |
9.42 |
3.5 |
2500 |
10.4 |
142 |
|
3.5 |
7/0.8 |
2.4 |
0.76 |
1.14 |
5.30 |
3.5 |
2000 |
11.6 |
200 |
|
5.5 |
7/1.0 |
3.0 |
0.76 |
1.14 |
3.40 |
3.5 |
2000 |
12.9 |
272 |
|
8 |
7/1.2 |
3.6 |
1.14 |
1.52 |
2.36 |
5.5 |
1500 |
17.0 |
431 |
|
14 |
7/1.6 |
4.8 |
1.14 |
1.52 |
1.33 |
5.5 |
1500 |
19.5 |
649 |
|
22 |
7/2.0 |
6.0 |
1.14 |
2.03 |
0.840 |
5.5 |
1500 |
25.1 |
971 |
|
38 |
7/2.6 |
7.8 |
1.40 |
2.03 |
0.497 |
7.0 |
1000 |
28.3 |
1533 |
|
60 |
19/2.0 |
10.0 |
1.40 |
2.03 |
0.309 |
7.0 |
1000 |
33.0 |
2271 |
|
100 |
19/2.6 |
13.0 |
1.40 |
2.03 |
0.184 |
7.0 |
800 |
39.3 |
3604 |
|
150 |
37/2.3 |
16.1 |
1.65 |
2.79 |
0.120 |
8.0 |
800 |
49.4 |
5560 |
|
200 |
37/2.6 |
18.2 |
1.65 |
2.79 |
0.0940 |
8.0 |
800 |
53.7 |
6907 |
|
250 |
61/2.3 |
20.7 |
1.65 |
2.79 |
0.0736 |
8.0 |
600 |
59.1 |
8769 |
|
325 |
61/2.6 |
23.4 |
2.03 |
2.79 |
0.0576 |
10.0 |
600 |
66.5 |
11120 |
|
Fore Core |
|||||||||
|
Conductor |
Minimum Average Insulation Thickness |
Minimum Average Sheath Thickness |
Maximum Conductor Resistance |
Test Voltage |
Minimum Insulation Resistance |
Overall Diameter Approx. |
Estimated Weight |
||
|
Conductor Nominal Area |
Structure |
Diameter |
|||||||
|
mm2 |
--- |
mm |
mm |
mm |
Ω/km |
kV |
MΩ/km |
mm |
Kg/km |
|
2.0 |
7/0.6 |
1.8 |
0.76 |
1.14 |
9.42 |
3.5 |
2500 |
11.2 |
174 |
|
3.5 |
7/0.8 |
2.4 |
0.76 |
1.15 |
5.30 |
3.5 |
2000 |
12.7 |
252 |
|
5.5 |
7/1.0 |
3.0 |
0.76 |
1.53 |
3.40 |
3.5 |
2000 |
14.9 |
373 |
|
8 |
7/1.2 |
3.6 |
1.15 |
1.53 |
2.36 |
5.5 |
1500 |
18.5 |
545 |
|
14 |
7/1.6 |
4.8 |
1.15 |
1.53 |
1.33 |
5.5 |
1500 |
22.4 |
885 |
|
22 |
7/2.0 |
6.0 |
1.15 |
2.03 |
0.840 |
5.5 |
1500 |
25.3 |
1251 |
|
38 |
7/2.6 |
7.8 |
1.40 |
2.03 |
0.497 |
7.0 |
1000 |
31.1 |
1960 |
|
60 |
19/2.0 |
10.0 |
1.40 |
2.03 |
0.309 |
7.0 |
1000 |
36.4 |
2943 |
|
100 |
19/2.6 |
13.0 |
1.40 |
2.03 |
0.184 |
7.0 |
800 |
45.1 |
4845 |
|
150 |
37/2.3 |
16.1 |
1.65 |
2.79 |
0.120 |
8.0 |
800 |
54.5 |
7191 |
|
200 |
37/2.6 |
18.2 |
1.65 |
2.79 |
0.0940 |
8.0 |
800 |
59.4 |
8961 |
|
250 |
61/2.3 |
20.7 |
1.65 |
2.79 |
0.0736 |
8.0 |
600 |
65.4 |
11400 |
|
325 |
61/2.6 |
23.4 |
2.03 |
3.56 |
0.0576 |
10.0 |
600 |
75.2 |
14760 |
