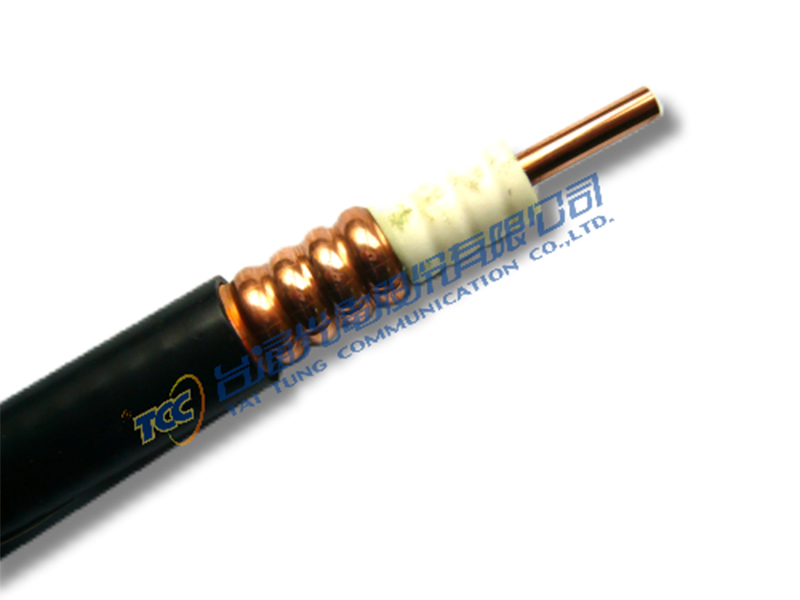

Low Loss Foam Dielectric Coaxial Cable
Low Loss Foam Dielectric
‧ Copper Conductor：Copper-clad Aluminum/Smooth Copper tube
‧ Dielectric Layer：Gas-injected foam PE
‧ Outer Conductor：Copper tube helical corrugated /Copper tube ring corrugated
‧ Outer cover: Low Smoke Free Halogen ( LSFH / LSZH ) / (PE) polyethylene

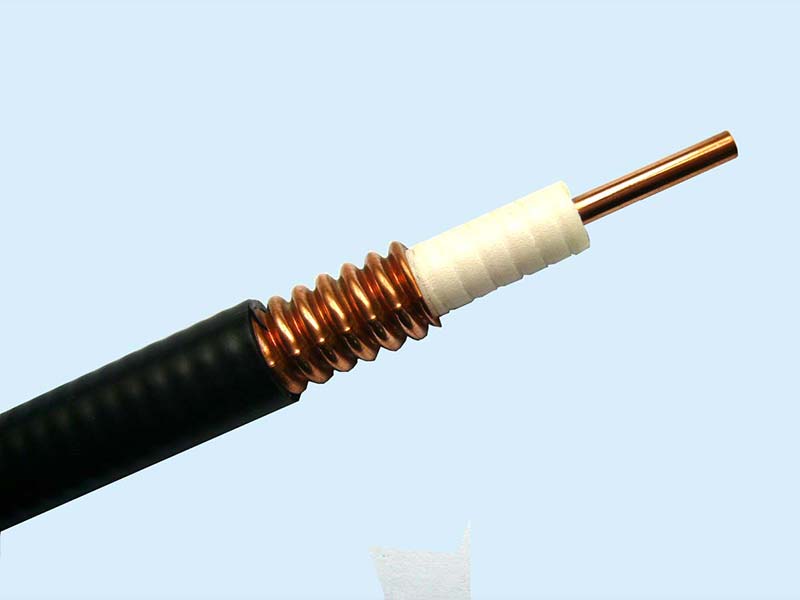

1/2” Supper-flexible 50 ohms Type: FT4-50-HF 1/2” Superflexible 50 ohms Low Loss Foam Dielectric

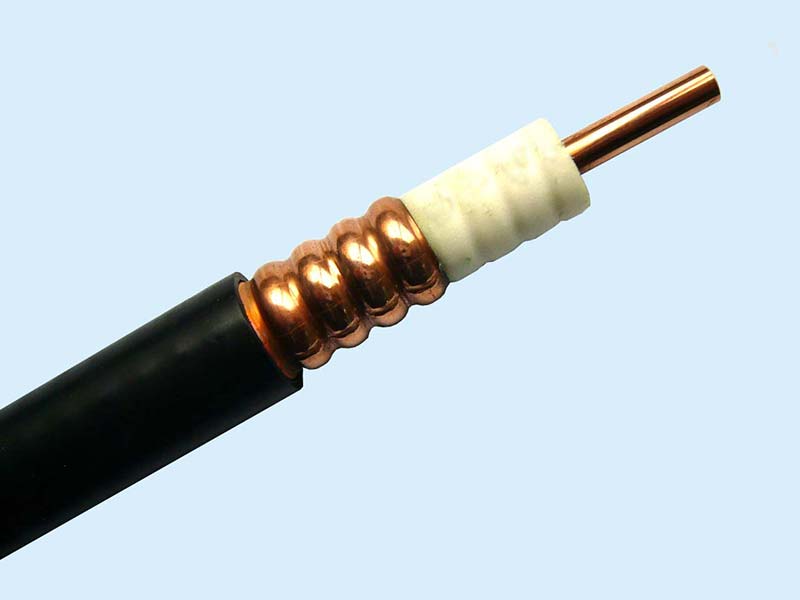

1/2” 50 ohms Type: FT4-50 1/2” 50 ohms Low Loss Foam Dielectric

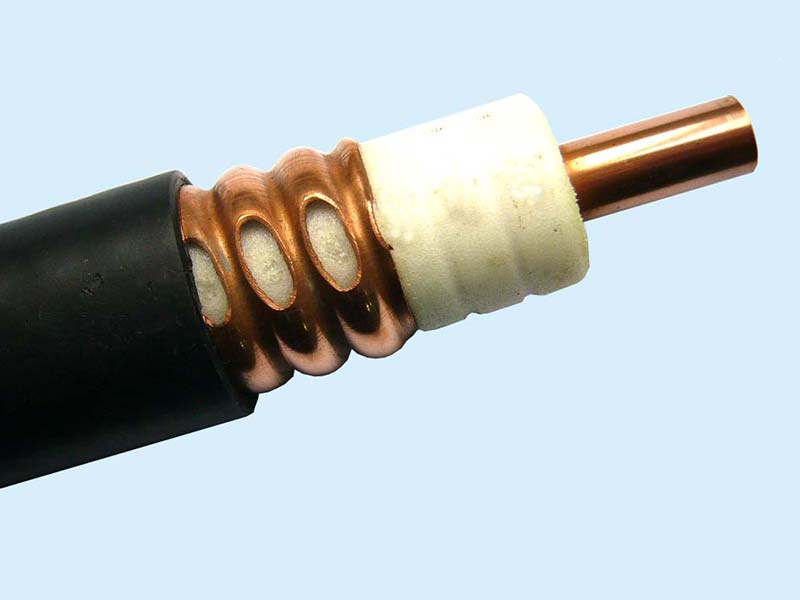

7/8” 50 ohms Type: FT5-50 7/8” 50 ohms Low Loss Foam Dielectric

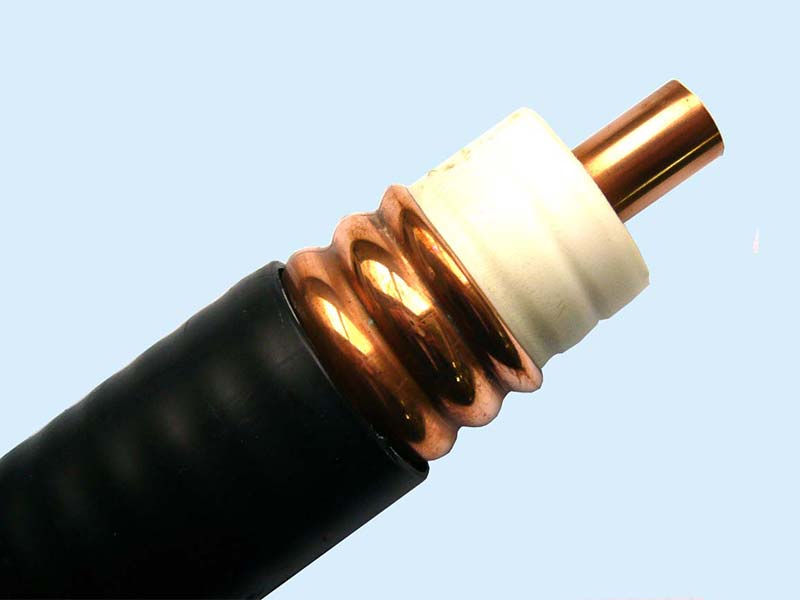

1-1/4” 50 ohms Type: FT6-50 1-1/4” 50 ohms Low Loss Foam Dielectric
1-5/8” 50 ohms Type: FT7-50 1-5/8” 50 ohms Low Loss Foam Dielectric

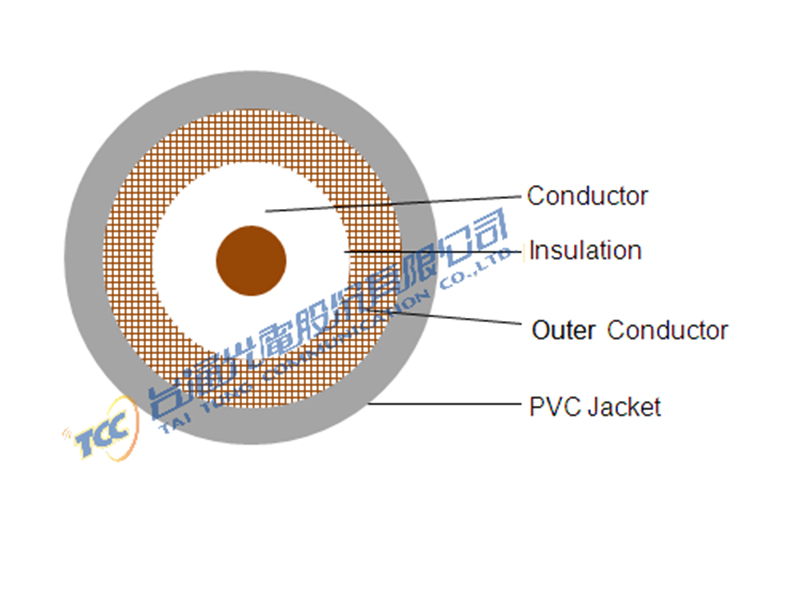

Cable Structure
|
Inner Conductor
|
|
||||
|
Material and Construction
|
Copper-clad Aluminum
|
Copper-clad Aluminum
|
Smooth Copper Tube
|
Smooth Copper Tube
|
Copper-clad Aluminum
|
|
Diameter
|
3.6mm
|
4.8mm
|
9.0mm
|
13.1mm
|
4.8mm
|
|
Dielectric
|
|
||||
|
Material
|
Gas-injected
foam PE
|
Gas-injected
foam PE
|
Gas-injected
foam PE
|
Gas-injected
foam PE
|
Gas-injected
foam PE
|
|
Diameter
|
8.9mm
|
12.2mm
|
23.2mm
|
32.0mm
|
12.2mm
|
|
Outer conductor
|
|
||||
|
Construction
|
Copper tube
helical corrugated
|
Copper tube
helical ring corrugated
|
Copper tube
helical ring corrugated
|
Copper tube
helical ring corrugated
|
Copper tube
helical ring corrugated
|
|
Diameter
|
12.2mm
|
14.9mm
|
24.9mm
|
36.0mm
|
14.9mm
|
|
Jacket
|
|
||||
|
Sta1/2”ndard jacket
|
13.6mm
|
16.0mm
|
27.9mm
|
39.0mm
|
16.0mm
|
|
Flame-Retardant Jacket
|
13.6mm
|
16.0mm
|
27.9mm
|
39.0mm
|
16.0mm
|
|
Cable Weight
|
|
||||
|
Standard Jacket
|
197kg/km
|
242kg/km
|
595kg/km
|
1050kg/km
|
242kg/km
|
|
LSFH Jacket
|
207kg/km
|
261kg/km
|
635kg/km
|
1130kg/km
|
261kg/km
|
Mechanical Characteristics
|
Minimum Bend Radius
|
32mm
|
125mm
|
250mm
|
380mm
|
510mm
|
|
Max. Tensile Strength
|
66kg
|
112kg
|
147kg
|
262kg
|
177kg
|
|
Operating Temperature
|
|
||||
|
Standard Jacket
|
-40 to +60℃
|
-40 to +60℃
|
-40 to +60℃
|
-40 to +60℃
|
-40 to +60℃
|
|
LSFH Jacket
|
-30 to +60℃
|
-30 to +60℃
|
-30 to +60℃
|
-30 to +60℃
|
-30 to +60℃
|
|
Flat Plate Crush Strength
|
1.7kg/mm
|
1.9kg/mm
|
1.7kg/mm
|
2.4kg/mm
|
2.7kg/mm
|
