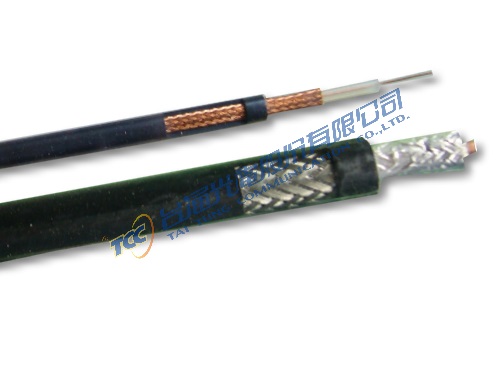

High Frequency Coaxial Cables

Ordering Description

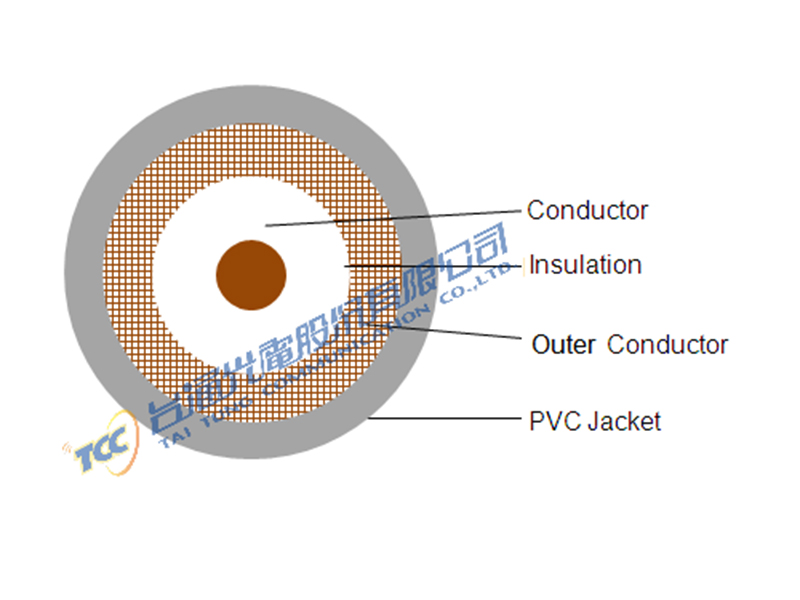

Inner Conductor

Insulation

Outer Conductor

PVC Jacket

Overall Diameter

Estimated Weight

Structure

Diameter

Bare Copper Wire Braided Shield

Diameter

Color

Normal Thickness

No/mm

mm

mm

mm

Ends

Carriers

mm

-

mm

mm

Kg/km

3C-2WS

7/0.18

0.54

3.2

0.14

5

24

4.6

Black

1.0

6.6±0.3

76

3C-2V

-

0..5

3.1

0.14

5

24

3.8

Black

1.0

5.8±0.5

48

3C-2W

-

0.5

3.1

0.14

5

24

4.5

Black

1.0

6.5±0.5

75

3C-2Z

-

0.5

3.1

0.14

5

24

3.8

-

-

3.8±0.5

28

3C-2T

-

0.5

3.1

0.14

5

24

5.4

Black

1.0

7.4±0.5

110

5C-2V

-

0.8

4.9

0.14

7

24

5.6

Black

1.0

7.6±0.5

75

5C-2W

-

0.8

4.9

0.14

7

24

6.3

Black

1.0

8.3±0.5

110

5C-2Z

-

0.8

4.9

0.14

7

24

5.6

-

-

5.6±0.5

48

7C-2V

7/0.4

1.2

7.3

0.18

8

24

8.2

Black

1.0

10.2±0.5

140

10C-2V

7/0.5

1.5

9.2

0.20

10

24

10.2

Black

1.5

13.2±0.5

235

10C-2W

7/0.5

1.5

9.2

0.20

10

24

11.2

Black

1.5

14.2±0.6

320

1.5C-2V*

-

0.26

1.6

0.10

5

16

2.1

Black

0.4

2.9±0.4

13

2.5C-2V

-

0.4

2.4

0.12

6

16

3.0

Black

0.5

4.0±0.5

25

1.5D-2V

7/0.18

0.54

1.6

0.10

5

16

2.1

Grey

0.4

2.9±0.4

14

2.5D-2V

-

0.8

2.7

0.12

7

16

3.3

Grey

0.5

4.3±0.5

35

3D-2V

7/0.32

0.96

3.0

0.14

5

24

3.7

Grey

0.8

5.3±0.5

44

3D-2W

7/0.32

0.96

3.0

0.14

5

24

4.4

Grey

1.0

6.4±0.5

75

5D-2V

-

1.4

4.8

0.14

7

24

5.5

Grey

1.0

7.5±0.5

85

5D-2W

-

1.4

4.8

0.14

7

24

6.2

Grey

1.0

8.2±0.5

120

8D-2V

7/0.8

2.4

7.9

0.18

8

24

8.8

Grey

1.4

11.6±0.5

195

8D-2W

7/0.8

2.4

7.9

0.18

8

24

9.7

Grey

1.4

12.3±0.6

260

10-2V

-

2.9

9.7

0.20

10

24

10.7

Grey

1.5

13.7±0.6

285

10D-2W

-

2..9

9.7

0.20

10

24

11.7

Grey

1.5

14.7±0.6

370

Ordering Description

Inner Conductor

PE Insulation

Outer Conductor

Jacket

Material

Structure

Material

Inner Braided Shield

Inner Braided Shield

Material

Diameter

Material

Conductor Diameter

Material

Conductor Diameter

-

NO/ mm

-

-

mm

-

mm

-

mm

RG-5B/U

Cu-Ag

1/0.29

PE-s

Cu-Ag

0.16

Cu-Ag

0.16

PVC

8.43±0.10

RG-6A/U

Cp

1/0.724

PE-s

Cp

0.16

Cp

0.16

PVC

8.43±0.10

RG-8A/U

Cu

7/0.724

PE-s

Cu

0.18

-

-

PVC

10..3±0.25

RG-9B/U

Cu-Ag

7/0.724

PE-s

Cu-Ag

0.16

Cu-Ag

0.16

PVC

10.7±0.25

RG-10A/U

Cu

7/0.724

PE-s

Cu

0.18

-

-

PVC

10.3±0.25

RG-11A/U

Cu-Sn

7/0.404

PE-s

Cu-Sn

0.18

-

-

PVC

10.3±0.17

RG-12A/U

Cu-Sn

7/0.404

PE-s

Cu-Sn

0.18

-

-

PVC

10.3±0.25

RG-13A/U

Cu-Sn

7/0.404

PE-s

Cu-Sn

0.16

Cu

0.16

PVC

10.7±0.25

RG-14A/U

Cu

1/2.59

PE-s

Cu

0.18

Cu

0.18

PVC

13.8±0.33

RG-17A/U

Cu

1/4.78

PE-s

Cu

0.26

-

-

PVC

22.1±0.38

RG-18A/U

Cu

1/4.78

PE-s

Cu

0.26

-

-

PVC

22.1±0.38

RG-19A/U

Cu

1/6.35

PE-s

Cu

0.26

-

-

PVC

28.5±0.38

RG-20A/U

Cu

1/6.35

PE-s

Cu

0.265

-

-

PVC

28.5±0.38

RG-22B/U

Cu

7/0.386/3

PE-s

Cu

0.16

Cu-sn

0.16

PVC

10.7±0.25

RG-23A/U

Cu

7/0.724/2

PE-s

Cu

0.16

Cu

0.16

PVC

16.5±0.5

24.0±0.5

RG-24A/U

Cu

7/0.724/2

PE-s

Cu

0.16

Cu

0.16

PVC

16.5±0.5

24.0±0.5

RG-34B/U

Cu

7/0.632

PE-s

Cu

0.18

-

-

PVC

16.0±0.25

RG-35B/U

Cu

1/2.65

PE-s

Cu

0.255

-

-

PVC

22.1±0.25

RG-55B/U

Cu-Ag

1/0.813

PE-s

Cu-Ag

0.127

Cu-sn

0.127

PVC

5.25max

RG-57A/U

Cu

7/0.724/2

PE-s

Cu

0.255

-

-

PE

15.9±0.381

RG-58C/U

Cu-Sn

10/0.18

PE-s

Cu-Sn

0.127

-

-

PVC

4.95±0.10

RG-59B/U

Cp

1/0.584

PE-s

Cp

0.16

-

-

PVC

6.15±0.10

RG-62A/U

Cp

1/0.643

PE-c

Cp

0.16

-

-

PVC

6.15±0.17

RG-62B/U

Cp

7/0.202

PE-c

Cp

0.16

-

-

PVC

6.15±0.17

RG-63B/U

Cp

1/0.643

PE-c

Cp

0.18

-

-

PVC

10.2±0.25

RG-71B/U

Cp

1/0.643

PE-c

Cp

0.16

0.127

Cu-sn

0.127

PE

6.35max

RG-74A/U

Cu

1/2.59

PE-s

Cu

0.18

Cu

0.18

PVC

13.8±0.33

RG-79B/U

Cp

1/0.643

PE-c

Cp

0.18

-

-

PVC

10.3±0.25

RG-84A/U

Cu

1/2.65

PE-s

Cu

0.26

-

-

PVC

22.1±0.38

RG-85A/U

Cu

1/2.65

PE-s

Cu

0.26

-

-

PVC

22.1±0.38

RG-86A/U

Cu

7/0.724/2

PE-s

Cu

-

-

-

-

-

RG-94/U

Cu-Ag

15/0.571

F-t

Cu-Ag

0.26

Cu

0.16

G

11.3±0.25

RG-108A/U

Cu-Sn

7/0.321/2

PE-s

Cu-Sn

0.127

-

-

PVC

5.97±0.25

RG-111A/U

Cu

7/0.386/2

PE-s

Cu

0.16

Cu-sn

0.16

PVC

10.7±0.25

RG-115/U

Cu-Ag

7/0.711

F-l

Cu-Ag

0.16

Cu-Ag

0.16

G

9.53±0.25

RG-115A/U

Cu-Ag

7/0.723

F-l

Cu-Ag

0.16

Cu-Ag

0.16

G

10.5±0.38

RG-122/U

Cu-Sn

27/0.127

PE-s

Cu-Sn

0.127

-

-

PVC

4.06±0.12

RG-130/U

Cu

7/0.742/2

PE-s

Cu

0.26

-

-

PVC

15.9±0.38

RG-131/U

Cu

7/0.724/2

PE-s

Cu

0.26

-

-

PVC

15.9±0.38

RG-133A/U

Cu

1/0.645

PE-s

Cu

0.18

-

-

PVC

10.3±0.25

RG-140/U

Cu-Ag

1/0.635

F-s

Cu-Ag

0.127

-

-

G

5.92±0.20

RG-14LA/U

Cu-Ag

1/0.991

F-s

Cu-Ag

0.127

-

-

G

4.83±0.12

RG-142B/U

Cu-Ag

1/0.991

F-s

Cu-Ag

0.127

Cu-Ag

0.127

F

4.95±0.12

RG-143A/U

Cu-Ag

1/1.45

F-s

Cu-Ag

0.16

Cu-Ag

0.16

G

8.26±0.17

RG-164U/U

Cu

1/2.65

PE-s

Cu

0.26

-

-

PVC

22.1±0.25

RG-174/U

Cp

7/0.160

PE-s

Cp

0.10

-

-

PVC

2.54±0.12

RG-177/U

Cu

1/4.95

PE-s

Cu

0.16

Cu-Ag

0.16

PVC

22.7±0.38

RG-178B/U

Cu-Ag

7/0.102

F-s

Cu-Ag

0.10

-

-

F

1.9max

RG-179B/U

Cu-Ag

7/0.102

F-s

Cu-Ag

0.10

-

-

F

2.54±0.12

RG-180B/U

Cu-Ag

7/0.102

F-s

Cu-Ag

0.10

-

-

F

3.68max

RG-181/U

Cu

7/0.404/2

PE-s

Cu

0.16

Cu

0.255

PVC

16.2±0.50

RG-187A/U

Cu-Ag

7/0.102

F-s

Cu-Ag

0.10

-

-

F

2.79max

RG-188A/U

Cu-Ag

7/0.170

F-s

Cu-Ag

0.10

-

-

F

2.79max

RG-195A/U

Cu-Ag

7/0.102

F-s

Cu-Ag

0.10

-

-

F

3.94max

RG-196A/U

Cu-Ag

7/0.102

F-s

Cu-Ag

0.10

-

-

F

2.03max

RG-212/U

Cu-Ag

1/1.41

PE-s

Cu-Ag

0.16

Cu-Ag

0.16

PVC

8.43±0.10

RG-213/U

Cu

7/0.752

PE-s

Cu

0.18

-

-

PVC

10.3±0.17

RG-214/U

Cu-Sn

7/0.752

PE-s

Cu-Sn

0.16

Cu-Ag

0.16

PVC

10.8±0.17

RG-215/U

-Sn

7/0.752

PE-s

-Sn

0.18

-

-

PVC

10.3±0.17

RG-216/U

Cu-Ag

7/0.404

PE-s

Cu-Ag

0.16

Cu

0.16

PVC

10.8±0.17

RG-217/U

Cu

1/2.69

PE-s

Cu

0.18

Cu

0.18

PVC

13.8±0.25

RG-218/U

Cu

1/4.95

PE-s

Cu

0.26

-

-

PVC

22.1±0.25

RG-219/U

Cu

1/4.95

PE-s

Cu

0.26

-

-

PVC

22.1±0.25

RG-220/U

Cu

1/6.6

PE-s

Cu

0.26

-

-

PVC

28.5±0.38

RG-221/U

Cu

1/6.6

PE-s

Cu

0.26

-

-

PVC

28.5±0.38

RG-222/U

R

1/1.41

PE-s

R

0.16

Cu-Ag

0.16

PVC

8.13±0.10

RG-223/U

Cu-Ag

1/0.889

PE-s

Cu-Ag

0.127

Cu-Ag

0.127

PVC

5.5max

RG-224/U

Cu

1/2.69

PE-s

Cu

0.18

Cu

0.18

F

13.8±0.25

RG-302/U

Cu-Ag

1/0.635

F-s

Cu-Ag

0.127

-

-

F

5.23max

RG-303/U

Cu-Ag

1/0.991

F-s

Cu-Ag

0.127

-

-

F

4.32±0.12

RG-304/U

Cu-Ag

1/1.5

F-s

Cu-Ag

0.16

Cu-Ag

0.16

F

7.11±0.12

RG-316/U

Cu-Ag

7/0.170

F-s

Cu-Ag

0.10

-

-

F

2.59max
