Duplex Armored Cable
Duplex Armored Cable
Applications
Features
- Optical Pig-tails and Patch cord.
- Ideal use for Optical distribution frame of FTTH.
- Ideal use for Optical devices and Equipments.
Features
- Flexible, Durable, and Convenient connection.
- Flame retardant PVC or Low Smoke Free Halogen Jacket.
- Good mechanical and environmental properties.
| Cable Structure | ||
|---|---|---|
| Fiber Count | 2 | |
| Tight Buffer Diameter(mm) | 0.9±0.05 | |
| Type | A type | B type |
| Cable Diameter(Approx.)(mm) | 3.8 | 3.0*6.1 |
| Cable Weight (Approx.) (kg/km) | 25 | 38 |
| Maximum Tensile Load | 400N | |
| Minimum bending radius | Dynamic：20 * OD, Static：10 * OD | |
| OD=cable outer diameter | ||
| Operating temperature range | -30℃~60℃ | |
| Cable Construction |
|---|
|

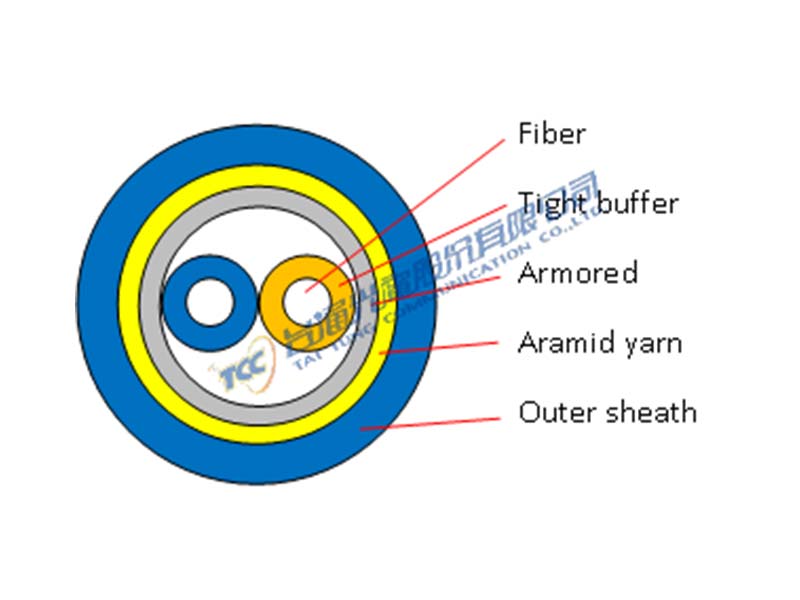

A type

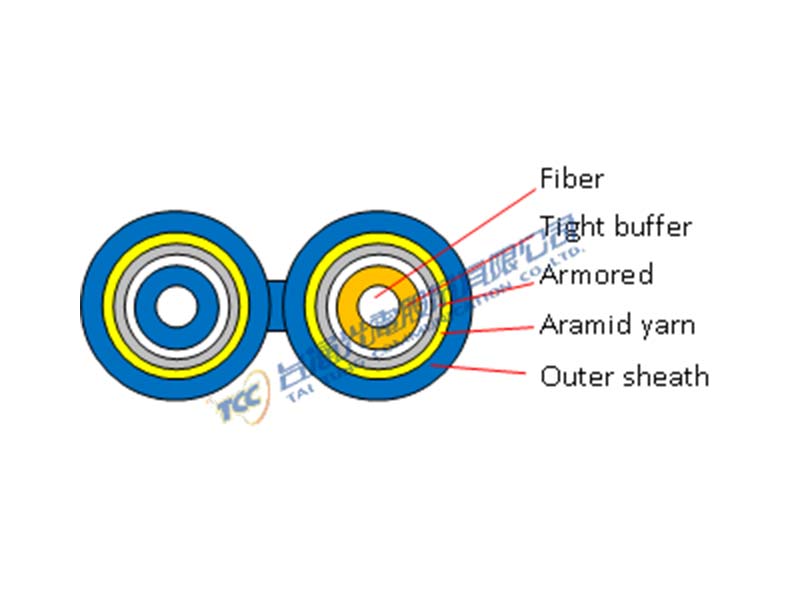

B type  |
