Multi-Core Armored Cable
Multi-Core Armored
Applications
- Optical Pig-tails and Patch cord.
- Ideal use for Optical distribution frame of FTTH.
- Ideal use for Optical devices and Equipments.
- Flexible, Durable, and Convenient connection.
- Flame retardant PVC or Low Smoke Free Halogen Jacket.
- Good mechanical and environmental properties.
Cable Structure | ||
---|---|---|
Fiber Count | 12 | |
Tight Buffer Diameter(mm) | 0.9±0.05 | |
Cable Diameter(Approx.)(mm) | 9.0 | |
Cable Weight (Approx.) (kg/km) | 130 | |
Maximum Tensile Load | 400N | |
Minimum bending radius | Dynamic:20 * OD, Static:10 * OD | |
OD=cable outer diameter | ||
Operating temperature range | -30℃~60℃ |

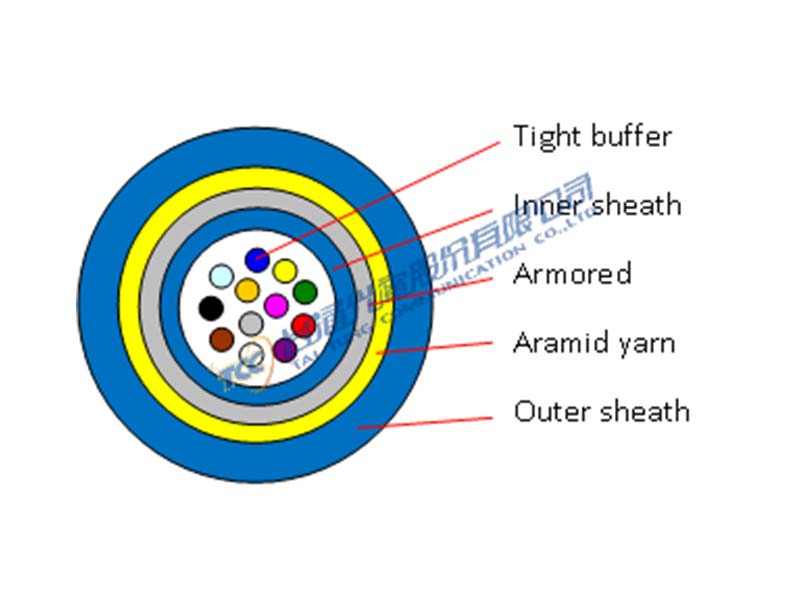

Cable Construction |
---|
