2~12 Fibers Flat Drop
2-12 Fibers Flat Drop
- Flat Drop Cable is specifically design for indoor applications with Bending Loss insensitive Single-Mode Optical Fiber.
- Understanding the need to be flexible and having low micro bending sensitivity compare to the regular fiber cables.
- TCC offers its high resistance low micro bending loss small radii cables for installations between pillars and corners.
- This cable design offers much ease as compared to conventional cables and minimum striping requirement.
| Cable Structure | ||
|---|---|---|
| Fiber Count | 2~12 | |
| Strength member | Galvanized steel wire | |
| Cable Diameter(Approx.)(mm) | 3.1*4.1 | |
| Cable Weight (Approx.) (kg/km) | 20 | |
| Maximum Tensile Load | 500N | |
| Minimum bending radius | During installation：20 * OD, After installation：10 * OD | |
| OD=cable outer diameter | ||
| Operating temperature range | -30℃~60℃ | |

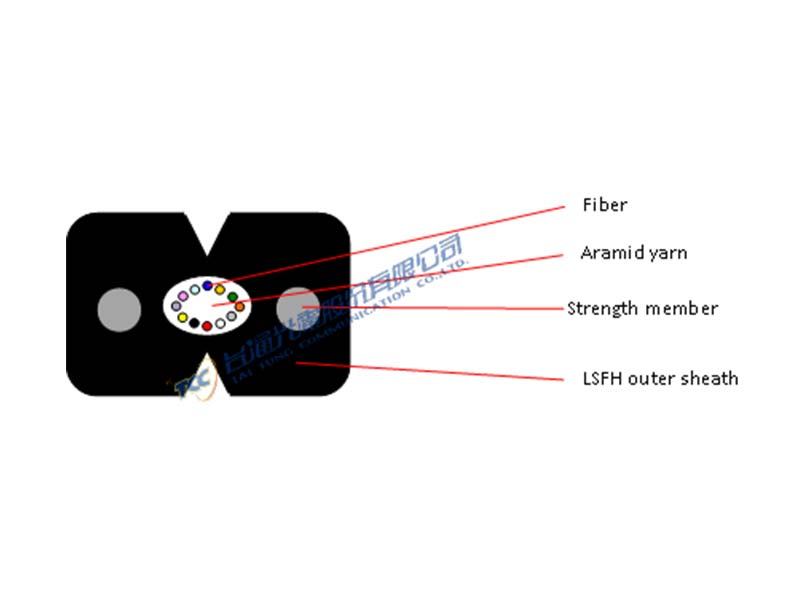

| Cable Construction |
|---|
 |
