2 Fibers Flat Drop Cable
2 Fibers Flat Drop
- Flat Drop Cable is specifically design for indoor applications with Bending Loss insensitive Single-Mode Optical Fiber.
- Understanding the need to be flexible and having low micro bending sensitivity compare to the regular fiber cables.
- TCC offers its high resistance low micro bending loss small radii cables for installations between pillars and corners.
- This cable design offers much ease as compared to conventional cables and minimum striping requirement.
| Cable Structure | |||
|---|---|---|---|
| Cable type | Drop Cable | Self-Supported Drop Cable | |
| Fiber Count | 2 | ||
| Strength member | KFRP | ||
| Self-support |
Material | - | Steel wire |
| Diameter(Nom.) | - | 1.2mm | |
| Cable Diameter(Approx.)(mm) | 3.1 x 2.0 | 5.3 x 2.0 | |
| Cable Weight (Approx.) (kg/km) | 10 | 30 | |
| Maximum Tensile Load | 500N | ||
| Minimum bending radius | During installation：20 * OD, After installation：10 * OD | ||
| OD=cable outer diameter | |||
| Operating temperature range | -30℃~60℃ | ||

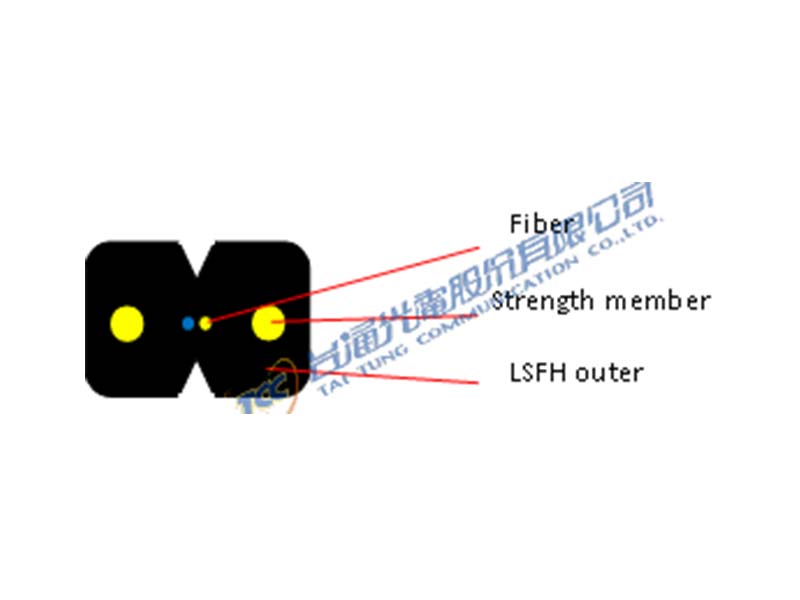

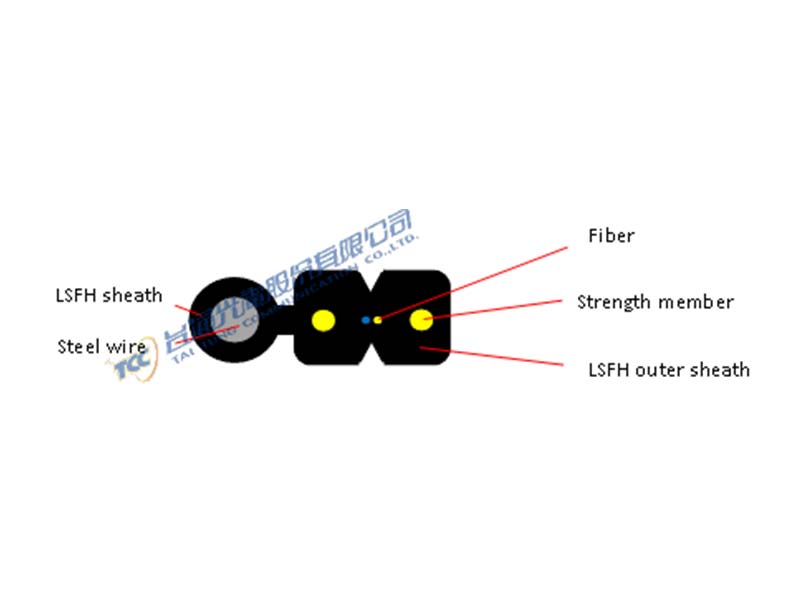

| Cable Construction |
|---|
 |
 |
