Aerial Cable (12 fibers per tube)
Aerial Cable 12F
- Loose tube provides one of the most basic protecting layers for the fibers.
- Each loose tube comprises of 12 optical fibers with filled jelly compound for prevention of water ingress.
- The loose tubes are stranded around a central strength member giving more mechanical strength to the cable.
- Aramid yarns contribute to better mechanical strength without losing the cables' flexibility.
- Self-Support Steel Wire adds extra tension strength to the cable.
- Armored, Fire-retardant, UV resistance, anti-rodent features can be designed as according to applications.
- The Aerial Cable applicable for aerial installation, CATV system and for subscriber networks.
| Cable Structure | ||||
|---|---|---|---|---|
| Fiber Count | 72 | 96 | 144 | 216 |
| Fibers per Subunit | 12 | |||
| Self-Support wire diameter(mm) | 7/2.0 | |||
| Cable Diameter(Approx.)(mm) | 16.5*26.5 | 18.59*28.5 | 22.0*32.0 | 22.5*32.5 |
| Cable Weight (Approx.) (kg/km) | 450 | 520 | 630 | 660 |
| Maximum Tensile Load | 3000N | |||
| Minimum bending radius | Dynamic：20 * OD, Static：10 * OD | |||
| OD=cable outer diameter | ||||
| Operating temperature range | -30℃~60℃ | |||

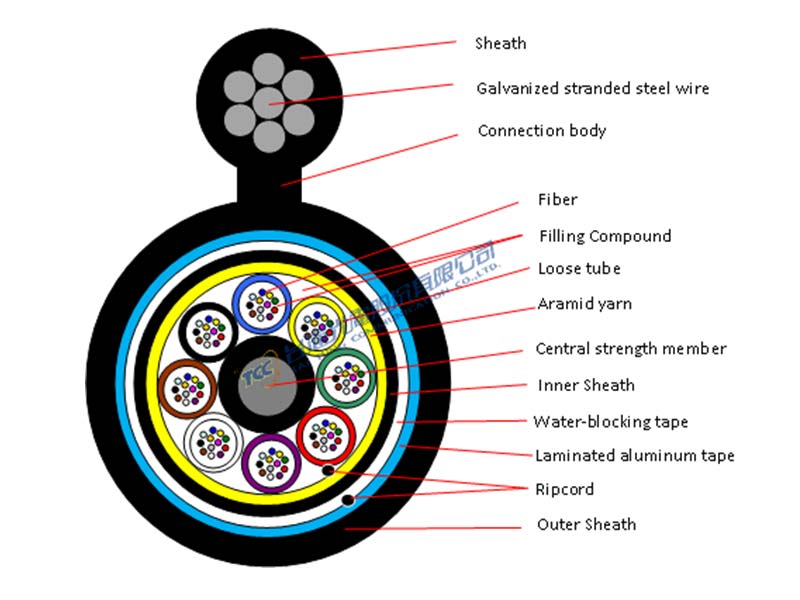

| Cable Construction |
|---|
 |
